6 inch Gate Valve

Description

Gate valve 6 inch means the valve size is 6 inch, and in DN it is DN150.

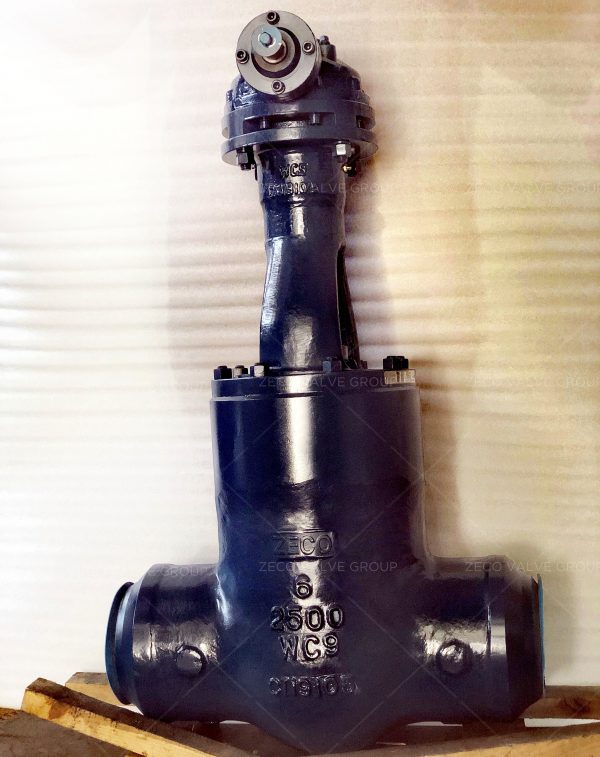

6 inch Gate Valve

What is a 6 inch Gate Valve?

All casting and forged parts of ZECO 6 inch gate valve, especially the body and cover two of the main pressure components, are used to strengthen the intensity of the heavy sections, although ZECO body, the cover thickness is up to standard, the heavy sections of the design can make the product more guaranteed, allowance in corrosive medium to ensure long service life of the product.ZECO pays great attention to the purchase and inspection of raw materials because ZECO knows very well that if raw materials are not strictly controlled, no matter how good the processing technology and detection means are in the later stage, they cannot turn unqualified products from the source into excellent products. Therefore, ZECO slowly moves valve products towards the route of handicraft products step by step.

Features of 6 Inch Gate Valve:

  • ZECO 6 inch gate valve has very reliable maintenance performance. The replaceable valve seat design ensures that later seat damage can be replaced on-site. The inverted seal design ensures online replacement when packing is replaced;
  • When ZECO 6 inch gate valve is transported, the stainless steel valve and carbon steel valve will be separately packaged, because at room temperature, when the carbon steel valve and stainless steel valve contact, will no immediate carburizing phenomenon, and the stainless steel valve has spots of corrosion is a certain period will appear. In a humid environment, if the carbon valve and stainless steel valve are stacked together is easy to produce chemical reactions, thus damaging the protective layer of the stainless steel valve, resulting in stainless steel valve rust;
  • After nearly 30 years of gate valve design, ZECO 6 inch gate valve products have stable performance and light switching torque;
  • ZECO 6 inch gate valve is all its own precision casting molds, and the casting sand is fine sand, beautiful appearance, and has clear casting characters.

Specification of 6″ Gate Valve

Design Confirms API 6D, API 600, BS 5163
Flanges Drilled Confirms ASME B16.5, EN 1092-1, EN 1092-2
Tightness Check API 598, ISO 5208, EN 12266-1
Face to Face Confirms API 6D, ASME B16.10, BS 5163, EN 558-1
Normal Pressure Class 150 ~ Class 2500, PN10 ~ PN16
Shell Test Pressure 1.5 * Design Pressure
Seal Test Pressure 1.1 * Design Pressure (Water)
Seal Test Pressure (Low Pressure) 6 Bar (Air)

Applications of 6″ Gate Valve

  • Chemical,
  • Petrochemical,
  • Oil & Gas,
  • Power Plant,
  • General Industry.

Dimensions & Weight of 6″ Gate Valve

Pressure Rating  Bore  Face to Face Dimension(in mm)    Weight
(in mm) RF BW RTJ kg
CLASS 150 150 267 403 279 85
CLASS 300 150 403 403 419 142
CLASS 600 150 559 559 562 285
CLASS 900 146 610 610 613 453
CLASS 1500 136 705 705 711 617
CLASS 2500 111 914 914 927 1590

Material of 6 Inch Gate Valve:

No Part Material
1 Body ASTM A351 CF3
2 Seat Ring ASTM A182 F304L + STL
3 Wedge ASTM A351 CF3 + STL
4 Stem ASTM A276 304L
5 Bonnet Gasket Graphite + SS304L
6 Bonnet Bolt ASTM A193 B8
7 Bonnet Nut ASTM A194 8
8 Bonnet ASTM A351 CF3
9 Backseat ASTM A182 304L
10 Stem Packing Reinforced Graphite
11 Handwheel KTH330-08
