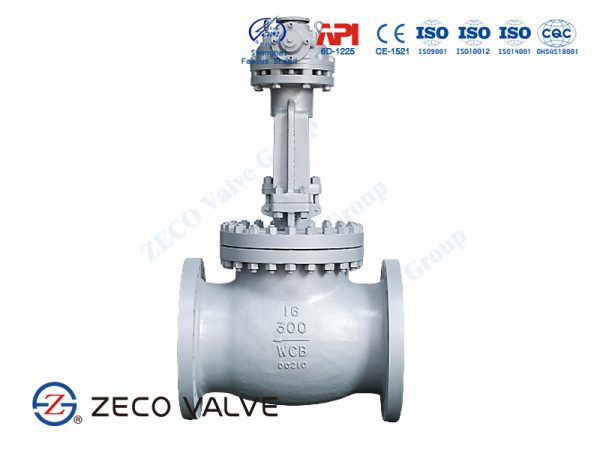

Cast Steel Globe Valve

Category:

Description

ZECO cast steel globe valve is forced sealed valve, valve closure, must be applied to the disc pressure to force the sealing surface does not leak.

Cast Steel Globe Valve

What is a Cast Steel Globe Valve?

Cast steel globe valves are mainly used for occasions of high pressure and small size, the function is to connect or truncate piping medium.

Cast Steel Globe Valves are designed and manufactured to ensure leakage of less than 100 ppm (parts per million) of volatile organic compounds.

When open and close, twisting the stem around the shaft for linear motion; nearly no friction between sealing faces, and the open height is small (In theory, the height of the opening is 1 / 4 Seat Diameter), thus the total height of the valve is relatively small. The disadvantage is due to the structural reasons for the valve so that the flow resistance and torque of opening and closing is a little big, medium flow direction is required (usually low into higher). The application of pressure and temperature range is large of globe valve, but it is generally used for medium and small size pipe.

How does a Cast Steel Globe Valve work?

When the medium enters the valve body from below the disc, the resistance to be overcome by the operation force is the friction force between the stem and the packing and the thrust force produced by the pressure of the medium, so the valve stems diameter to be large, the valve stem bending will occur. Bodies of globe valves are designed considering the same characteristics as gate valves, which in this case means that disc is guided in bigger valve sizes or high pressure service in order to avoid vibrations and a better seat.

Features of Cast Steel Globe Valves

  • ZECO cast steel globe valve is designed with anti blow-out stem to prevent the valve stem from being damaged by maintenance personnel when the packing needs to be replaced during maintenance;
  • The plug seat surface of ZECO cast steel globe valve can be designed in spherical, parabola or flat or other optional on customer request;
  • The gland eyebolts of ZECO cast steel globe valve are mounted to swing aside to facilitate packing maintenance;
  • The sealing face of ZECO cast steel globe valve is hard to wear and abrasion, good sealing performance, there was no relative sliding between Piston and seat sealing face when open and close, so the wear and abrasion is not serious, good sealing performance, long life.
  • Well designed bodies minimising turbulence and flow losses;
  • Backseating arrangement permits replacement of packing while the Valve is in full open position and it is available in two different discdesign ON/OFF type and Flow control type;
  • To ensure trouble free performance, seating surfaces are accurately machined and perfectly lapped;
  • Optional Locking Device or Stem Extension Pressure seal bonnet;
  • Optional Direct Mounting to ISO 5211.

Product Range of Cast Steel Globe Valves

  • Nominal diameter: 1/2″~24″
  • Pressure range: Class150~2500
  • End connection: Flanged (FF, RF, RTJ) to international standards
  • Working temperature:-29℃~425℃
  • OS&Y, Outside Stem and Yoke
  • Metal-sealed(API Trim # 1, #5, #8, #10 and etc.)
  • Reduce Port
  • Operation: Handwheel, Gear Box, Electric Actuator, etc.
  • Optional Locking Device or Stem Extension
  • Optional Direct Mounting to ISO 5211

Material of Cast Steel Globe Valves

No Part Material
1 Body ASTM A216 WCB + 13Cr
2 Disc ASTM A105 + 13Cr
3 Stem ASTM A276 410
4 Bonnet Gasket Graphite + SS304
5 Bonnet ASTM A216 WCB
6 Bonnet Bolt ASTM A193 B7
7 Bonnet Nut ASTM A194 2H
8 Stem Packing Reinforced Graphite
9 Gland ASTM A276 410
10 Gland Eyebolt ASTM A193 B7
11 Stem Nut ASTM B148

Details About Buying Cast Steel Globe Valve

Globe Valve Manufacturer ZECO
Valve Type Cast Steel Globe Valve
Valve Material Cast steel, etc
Valve Test 100% quantity tested before delivery
Valve Guarantee 18 months from the date of dispatch ex works, or 12 months from date of commodity installation.
Valve Painting Customer request
Valve Package Wooden case
MOQ No requirement
Valve Certificate API 623, BS1873, ASME B16.34 or equivalents
Delivery Detail Shipped in 4 or 6 weeks after payment
Port SHANGHAI
Payment Terms L/C, D/A, D/P, T/T
Certificate Offered Packing List, Commercial Invoice, Test Reports and Material Certificates, Certificate of quality and quantity, Seller’s Certificate of Guarantee
