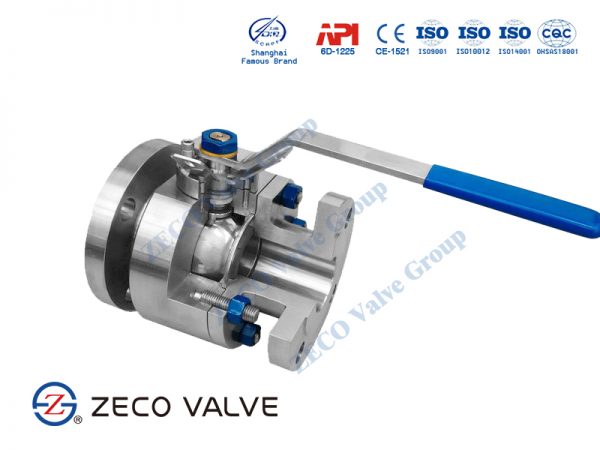

2 Piece Ball Valve

Description

The 2 piece stainless steel ball valve is probably the most widely used ball valve. The 2 piece ball valve will open or shut off flow on most liquids and gases quickly and easily and is suitable for just about any application where a simple on/off action is needed.

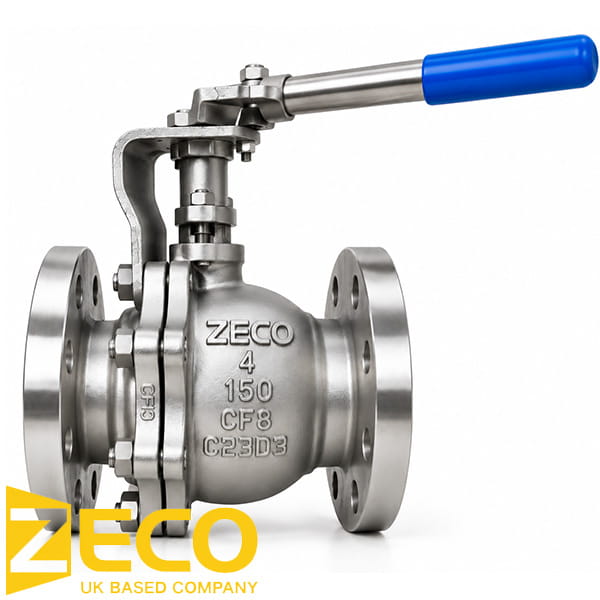

2pc Ball Valve

What is a 2 Piece Ball Valve?

2 piece ball valves are some of the most common ball valves used. As the name suggests, the two piece ball valve consists of two pieces, one piece that has one end connection and the body. The second piece fits into the first, holds the trim in place and includes the second end connection. Once installed these valves typically cannot be repaired unless they are removed from service.

ZECO Ball valve is the same to the ordinary that trim spring with the stem to reach the purpose of open/ close, it is mainly adopted to cut off medium on pipe. It features for simple structure, good sealing capacity, flexibility, small blockage coefficient, easy operation etc. ZECO is the global supplier of 2PC ball valves, which can be divided into 2 piece floating ball valves and 2 piece trunnion mounted ball valves.

Construction of 2 Piece Ball Valve

The Ball Valves are of a two piece construction and have a solid full bore ball. Relevant design standards are EN ISO 17292, EN 12516, ASME B16.34 and API 608.

Applications of 2 Piece Ball Valve

The 2 piece ball valves are designed to be used as shut-off valves for corrosive and non-corrosive liquids, gases, vapours and loose materials. Medium may fl ow in both directions through the ball valves.

Features of 2 Piece Ball Valves

  • As the moving parts of valve, ball, valve stem and handle are an assembly unit. The head of valve stem is shaped a diploid, thus to easily distinguish whether valve is in the “ON” position from handle position. When handle or stem diploid is in parallel with the pipe axis, valves is in “ON” position, when handle or stem diploid is vertical to the pipe axis, valve is in “OFF” position;
  • When the medium go through the valve, the pressure in middle cavity would pull out the stem. In order to prevent the occasion from happening, a convexity is designed. At the same time, a lubricator device has been added, so even if the fire damage would happen to damage the o-ring, the lubricator device would inject sealing oil to prevent medium from leaking;
  • When operating the valve, the friction between the ball and the nonmetal seat, like PTFE or etc. will produce electrostatic charge that can be accumulated on the ball, To prevent static spark, an anti-static device is placed on the valves to derive the electric charge accumulated in the ball from the static channel between the ball and the stem, or between the stem and valve body;
  • In order to prevent the mal-operation of the valve, the open/close position can be equipped with lock device, especially when they are used outdoor or process forbidden the malfunction.

Material of 2 Piece Ball Valves

No Part Material
1 Body ASTM A182 F316
2 Bonnet ASTM A182 F316
3 Bonnet Bolt ASTM A193 B8M
4 Bonnet Nut ASTM A194 8M
5 Bonnet Gasket Graphite +SS316
6 Seat Ring VITON
7 Ball ASTM A182 F316
8 Stem ASTM A276 316
9 Stem Packing Graphite
10 Gland ASTM A351 CF8M
11 Stop Collar ANSI 1025
